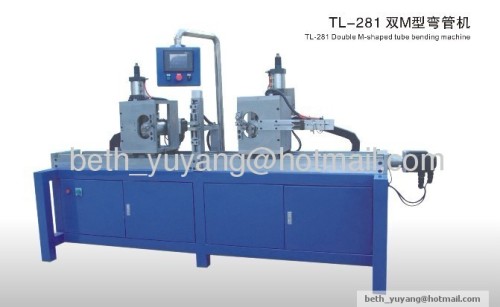

TL-281 Double M shape tube bending machine for heating element or electric heater TL-281 manufacturer from China Shenzhen Tongli Machinery Techinical Ltd.

Product Detail

Model No.: TL-281

Production Capacity: 50 sets/month

Delivery Date: 30 days after receiving dep...

Raw Material: Others

Extra Services: Others

Certification: CE

Brand Name: FUTAI

Means of Transport: Ocean,Air

Packing: Firm wooden case

Power: Others

Machine Type: Pipe and Tube Bending Machi...

Automation: Automatic

Material / Metal Processed: Brass / Copper

Certificate: ISO9001:2000

Used to bend heating elements
Bend to double M shape
Can bend 1-4pcs at a time

Functions:

1. PLC automatically controlled, human-computer interface, bending tube parameters can be changed.

2. Load material manually, pneumatic clamping, bend 5pcs at a time(Φ6.5mm).

3. Bend automatically according to the presetted parameter.

4. Main parts: Servo motor, reduction gear, ball bearing, precision return board and control system.

5. Applicable tube length: Below 2200mm( It can be custom-made)

6. Applicable tube diameter: Φ6.5mm~Φ12mm

7. Show how to clear fault automatically.

Main technical parameters:

1. Power supply:Triphase 380V, 50Hz

2. Air supply: 4~7kg/cm2

3. Rated power: 5KW

4. Efficiency: 8000pcs~12000pcs/8h

5. Applicable tube diameter: Φ6mm~Φ12mm

6. Applicable tube length: ≤2200mm

7. Size(L*W*H):2900*900*1700(mm)

8. Weight: 1000kg
